Dynamita SUMO v24.0.1 Best Wastewater Simulation Software

Dynamita SUMO is a professional wastewater treatment process simulator designed for engineers, researchers, plant operators, and environmental consultants. Unlike simpler empirical models or spreadsheet calculations, SUMO uses fundamental biokinetics (Monod expressions) and physical transport to predict effluent quality, sludge production, oxygen uptake, and greenhouse gas emissions from wastewater treatment plants.

The software is used for designing new treatment facilities, optimizing existing plant performance, troubleshooting operational issues, training operators, and conducting research on advanced treatment processes. It supports all major activated sludge models (ASM1, ASM2d, ASM3, ASM2d + BioP, ASM2d + Anammox, ASM3 + BioP) plus secondary settling tank models (Takács, 1D), biological nutrient removal (BNR), anaerobic digestion, and sidestream treatment.

Interface Comparison

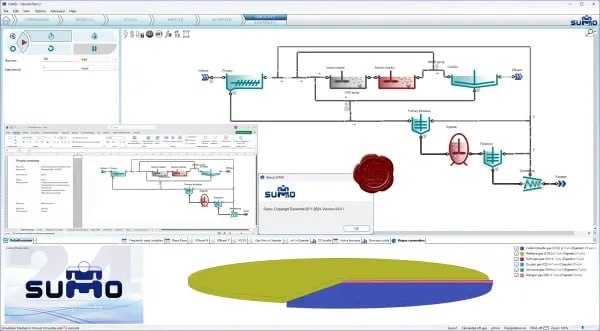

SUMO uses a task-flow-based graphical user interface designed specifically for Windows 10 and 11. Unlike competitors like GPS-X or WEST that use traditional menu-driven interfaces, SUMO organizes the workspace around a drawing board where users drag and drop process units, connect them with pipes, and configure parameters through property dialogs.

Compared to GPS-X (Hydromantis), SUMO’s interface is more modern and intuitive. GPS-X uses a similar drawing board approach but with dated graphics and less responsive interaction. SUMO’s task bar guides users through the workflow: Configure (build plant layout), Models (select biokinetic models), Tools (define plantwide calculations), Inputs (set influent and operational parameters), Outputs (select results to display), and Simulate (run).

Speed And Optimization

SUMO is optimized for fast simulation. For a typical municipal activated sludge plant (100,000 PE, MLE configuration with anaerobic digestion), a 365-day dynamic simulation with 15-minute timesteps completes in 60-120 seconds on a standard workstation (Intel Core i7, 16GB RAM).

The steady-state solver converges quickly for design calculations. Most steady-state simulations complete in under 5 seconds, allowing rapid iteration of design alternatives.

• Scenario Manager: It is a significant productivity feature. Users can create multiple operational scenarios (different waste activated sludge flow rates, different recycle ratios, different chemical doses) and run them all in a single batch. Results are displayed side-by-side for comparison. This reduces optimization time from days to hours.
• Sensitivity Analysis: It allows users to vary parameters such as μ_max (maximum specific growth rate), K_S (half-saturation coefficient), and η (anoxic growth factor) and see the impact on effluent quality. The software automatically runs multiple simulations with parameter variations and presents results in comparative charts.
• Optimizer: It fits model outputs to target values or measured data. It can automatically adjust operational parameters (waste flow, recycle flow, chemical dose) to achieve desired effluent quality (e.g., ammonia below 2 mg/L). This is valuable for calibration and operational optimization.

Compared to GPS-X, SUMO is faster. GPS-X simulations of comparable complexity take 2-3x longer. Compared to BioWin, SUMO is comparable in speed but offers more advanced optimization features.

Creative Flexibility

SUMO’s defining feature is its open-source modeling approach. All model code is visible and editable. Models are coded in SumoSlang, Dynamita’s intuitive simulation language, in Excel tabular format. Users can modify any existing model or create entirely new models for specialized processes.

If SUMO does not have a specific biokinetic pathway you need, you can add it yourself. If you need to modify the ASM2d BioP model to include a new metabolic pathway, you can edit the equations directly. This is not possible in competing simulators where models are compiled and hidden.

SumoSlang is the built-in simulation language. It supports both dynamic and algebraic models. The language is designed for process engineers, not programmers. Equations are written in a readable format with automatic unit checking and mass balance verification.

Model Editor includes automated mass balance checking. When you add a new process or modify an existing one, the editor verifies that mass is conserved no carbon, nitrogen, or phosphorus is created or destroyed. This prevents common modeling errors.

SUMO supports virtually unlimited process configurations. Units include all types of activated sludge reactors (CSTRs, PFRs, oxidation ditches, SBRs), fermenters, anaerobic digesters, MBBR, IFAS, MABR, MBR, BAF, UASB, primary/secondary/high-efficiency settlers, thickeners, centrifuges, dewatering units, filters, and reverse osmosis (on request).

The software includes a Digital Twin Toolkit (optional) with open API connection to third-party applications. This allows real-time optimization of operating plants using the same models developed during design.

Advanced Functions

1. Activated Sludge Models (ASM) Implementation: SUMO implements all major activated sludge models including ASM1 (COD removal, nitrification, denitrification, OUR), ASM2d (chemical phosphorus removal, BioP with PAO/GAO, fermentation), ASM2d + Anammox (mainstream deammonification for low COD/N), ASM2d + BioP (enhanced biological phosphorus removal with PAO, GAO, P-release/uptake), ASM3 (storage polymers X_STO, endogenous respiration), and Sumo4N (four-step nitrification-denitrification with N₂O formation for carbon footprint estimation).
2. Secondary Settling and Clarifier Models: The software includes the Takács 1D model (10 layers with hindered and compression settling), Otterpohl and Freund models, and flocculent settling (dynamic). State Point Analysis (SPA) diagrams help assess clarifier performance and identify solids loading limitations.
3. Anaerobic Digestion Model (ADM1): SUMO includes a comprehensive anaerobic digestion model (on request) with hydrolysis, acidogenesis, acetogenesis, methanogenesis, and pH inhibition. This is essential for designing sludge treatment facilities.
4. Greenhouse Gas (GHG) and Carbon Footprint: The Sumo4N model includes N₂O formation (nitrifier denitrification and AOB pathway). The software calculates carbon footprint (CFP) estimation compatible with IPCC Tier 3 reporting. This is a differentiating feature for utilities required to report greenhouse gas emissions.
5. PFAS Removal Modeling: Version v24.0 introduces PFAS (PFOA & PFOS, particulate and dissolved) removal modeling. This is critical for facilities required to meet emerging contaminant regulations.
6. Integrated Urban Wastewater System (IUWS): SUMO includes urban catchment and river models, allowing simulation of the entire system from sewer network through treatment plant to receiving water body. This is valuable for total maximum daily load (TMDL) studies and combined sewer overflow (CSO) planning.
7. Prezone and Manual SBR: New in v24.0, prezone SBR (hydraulically linked variable volume reactors with flexible cycle setup) and manual SBR (driven by actual measured data or plantwide controllers).

Similar Tools

SUMO vs. GPS-X: GPS-X is a mature product with a large user base, but models are closed-source. Users cannot see or modify the underlying equations. SUMO’s open-source approach allows complete transparency and customization. GPS-X uses subscription pricing; SUMO offers perpetual licenses.

SUMO vs. BioWin: BioWin is easier for beginners and has excellent documentation. However, BioWin’s model library is fixed; you cannot modify existing models or create new ones. SUMO is more flexible but has a steeper learning curve.

SUMO vs. WEST: WEST is popular in academic settings but less common in industry. It has a steeper learning curve and less intuitive interface. SUMO is used by both academics and practitioners.

Strengths And Weaknesses

Strengths:

• Open-source model code is the biggest differentiator. Users can see every equation, modify existing models, and create new ones.
• This is not possible in any competing wastewater simulator.
• SUMO covers the complete wastewater treatment spectrum: primary treatment, activated sludge (all configurations), anaerobic digestion, sidestream treatment, sludge dewatering, and receiving water impacts.
• No other simulator offers this breadth.
• The scenario manager, sensitivity analysis, and optimizer are integrated tools that competitors offer as separate modules or not at all.
• PFAS modeling (v24.0) is ahead of competitors, addressing emerging regulatory requirements.
• The Digital Twin Toolkit with open API allows real-time optimization of operating plants.

Weaknesses:

• The learning curve is steeper than BioWin. Users without modeling experience will need formal training.
• The user interface, while functional, is less polished than commercial software from larger vendors.
• Excel is required for the Model Editor. This is a limitation for users without Microsoft Office.
• SUMO runs on Windows only (though it runs on Mac within Parallels). No native Linux or macOS version.
• Pricing is not publicly listed; users must request quotes.
• This is typical for professional engineering software but inconvenient for quick comparison.

User Experience

SUMO is designed for professional engineers, not casual users. The learning curve is moderate for experienced process engineers familiar with ASM models and wastewater treatment principles. Beginners will need formal training. Dynamita offers training online, at their locations, or at client sites.

The task-flow-based interface is intuitive once you understand the logic: drag process units onto the drawing board, connect them, double-click to configure, run simulation, view results. The mass flow displays on the drawing board provide immediate feedback without navigating to separate results windows.

For large projects, SUMO connects to digital twin technology (additional cost). This allows real-time optimization of operating plants using the same models developed during design. Users report that SUMO’s support is exceptional the development team responds quickly to questions and requests for new features. The open-source approach means users can also debug their own models without waiting for vendor support.

Final Verdict

Dynamita SUMO v24.0.1 is the most flexible and comprehensive wastewater treatment process simulator available. The open-source model code is a significant advantage over competitors. If you need to model a standard activated sludge plant, any simulator will work. If you need to model advanced processes (partial nitritation/Anammox, S2EBPR, PFAS removal), develop new model formulations, or customize existing models, only SUMO allows that.

The software is best suited for professional process engineers, researchers, and advanced consultants. Beginners should plan for formal training. The combination of SUMO for wastewater and DYNAMIZU for water applications provides complete “OneWater” modeling capability unmatched by any competitor.

Who should buy SUMO: Engineering consulting firms specializing in wastewater treatment design. Researchers developing new treatment technologies. Utilities with complex treatment trains that off-the-shelf simulators cannot represent. Academics teaching advanced process modeling.

Who can use alternatives: Engineers who only need standard activated sludge modeling may find BioWin sufficient. Organizations without modeling expertise may prefer the simpler interface of BioWin. Budget-constrained users may consider open-source alternatives (though none offer SUMO’s unit process library and open-source models combined).

For any wastewater professional serious about process modeling, SUMO provides the accuracy, flexibility, and advanced capabilities required to design, optimize, and operate modern treatment facilities. The ability to see and modify every model equation is not just a feature; it is a fundamental advantage that separates SUMO from every competitor.
