conclass ConVoid Openings (1.7.00) Smart Opening Creation Tool for Revit MEP and Structural Engineers Download
Download the conclass ConVoid Openings (1.7.00) Smart Opening Creation Tool for Revit MEP and Structural Engineers from this link…
Summary
ConVoid Openings is a specialized Autodesk Revit extension developed by conclass that automates the creation and management of MEP (mechanical, electrical, plumbing), structural, and builder’s work openings. Unlike manual opening creation that requires tedious individual placement and manual updates when designs change, ConVoid automatically generates openings based on intersections between MEP services (ducts, pipes, cable trays) and structural host elements (walls, floors, ceilings).
The software supports linked Revit and IFC models, enabling coordination across multiple disciplines without requiring all elements to be in the same model. ConVoid handles parametric changes intelligently: if an MEP service or host element moves or resizes, openings update automatically without needing deletion and recreation. The tool also facilitates coordination via BCF (BIM Collaboration Format) for review and approval workflows with structural engineers.
Key Features
1. Automatic Opening Placement

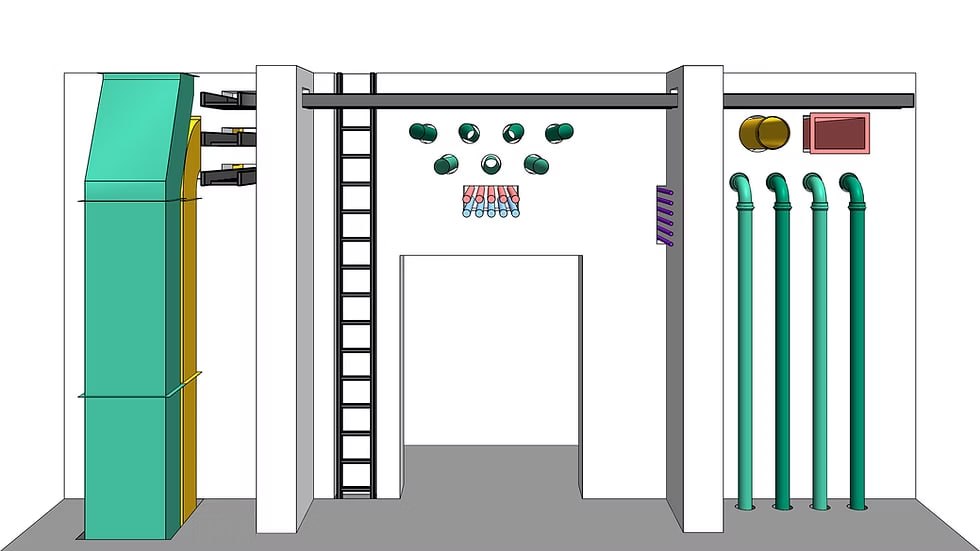

Creates openings (rectangles, circles, or custom polygonal shapes) based on intersections between MEP services and structural host elements. Supports builders work openings, MEP penetrations, recesses and pockets, and structural openings.
2. Intelligent Updates
Automatically updates opening dimensions, locations, and parameters (Width, Height, Diameter) if the MEP service or host element changes. No need to delete and recreate openings manually.
3. Oversize Settings
Allows specific clearances around services for sealing, firestopping, or insulation requirements.
4. Slope Support
Creates slanted openings when MEP elements intersect host elements at an angle, ensuring accurate openings for sloped pipes or ducts.
5. Polygonal Openings
Supports creation of 3 to 12-sided polygonal openings for complex scenarios where rectangular or circular openings are insufficient.
6. Parameter Transfer
Transfers data from MEP services to opening families including fire ratings, system information, and other parameters. Keeps all data dynamically updated with design changes.
7. Linked Model Support
Works with linked Revit and IFC models. No model requirements to consider — supports all 3D elements and Revit categories.
8. IFC Provision for Voids Conversion
Converts IFC Provision for Voids directly into Revit openings, eliminating redundant work.
9. Smart Tagging
Automatically places annotations in available spots, intelligently avoiding overlap with existing plan content.
10. Auto Dimension
Automatically places dimensions and section views with one click. Dimensions entire walls with openings and MEP elements, including linked models.
11. Clash Detection
Detects and resolves clashes between elements, ensuring coordination across all disciplines.
12. Plan Check
Ensures all openings in 2D views are tagged and visible, identifying any missing or untagged openings in drawings.
13. Opening Families
Includes Revit families for horizontal, vertical, round, rectangular, polygonal, and structural openings with auto-filled parameters like fire rating, materials, and elevations.
14. Convert Doors and Windows
Automatically converts doors and windows from linked architectural Revit or IFC models into structural openings.
15. Change Tracking
Tracks and logs all changes for audit purposes. Automatically updates openings during design changes and maintains a detailed changelog.
16. BCF Collaboration
Supports BCF import and export for reviewing and approving openings with structural engineers. Create and manage issues with 3D markers and viewpoints.
17. Excel and HTML Export
Generates reports with automatic Excel, CSV, and HTML export that preserves content and formatting.
Supported Opening Types
| Opening Type | Description |
|---|---|
| Builders Work Opening | General construction openings |
| MEP Opening / Penetration | For ducts, pipes, cable trays |
| Recesses and Pockets | Recessed areas for equipment |
| Structural Openings | Openings in structural elements |
| Provision for Void | IFC-based void definitions |
| Door and Window Conversion | Convert architectural openings to structural |
What’s New in ConVoid Openings 1.7.00
- Version 1.7.00 includes enhanced polygonal opening support with up to 12 sides.
- Improved parameter transfer capabilities for fire ratings and system information.
- Updated BCF collaboration with better issue tracking.
- Enhanced IFC Provision for Voids conversion.
- Performance optimizations for large linked models.
- Bug fixes and stability improvements.
System Requirements
To run ConVoid Openings 1.7.00 effectively, your system should meet the following specifications.
Minimum Requirements:
-
Operating System: Windows 10 or Windows 11 (64-bit)
-
Software Requirement: Autodesk Revit (compatible version)
-
Processor: Intel Core i5 or AMD equivalent
-
RAM: 8 GB minimum (16 GB recommended)
-
Graphics: Dedicated GPU with 2 GB VRAM
-
Storage: 500 MB free space
Installation Guide
Follow these steps to install ConVoid Openings 1.7.00.
-
Download the Installer: Obtain the official ConVoid installer from the conclass website.
-
Try Before You Buy: A 14-day trial is available on the downloads page.
-
Close Revit: Close Autodesk Revit completely before installation.
-
Run as Administrator: Right-click the installer and select “Run as Administrator.”
-
Follow the Setup Wizard: Complete license acceptance and installation directory selection.
-
Launch Revit: Open Revit. ConVoid appears as a tab in the ribbon.
-
Activate License: Enter license key for full version. Trial users can begin immediately.
-
Configure Settings: Set oversize defaults, transfer parameters, and opening family preferences.
How to Use ConVoid Openings
Step 1: Link Models
Link Revit or IFC models from MEP and structural disciplines. ConVoid Openings works with linked models without requiring all elements in the same file.
Step 2: Define Opening Rules
Set oversize dimensions for clearance and sealing. Configure automatic merging of closely spaced openings to prevent structural issues.
Step 3: Generate Openings
Run automatic opening creation based on intersections between MEP services and structural host elements. Supports rectangular, circular, slanted, and polygonal openings (3-12 sides).
Step 4: Review and Approve
Use BCF export/import to coordinate with structural engineers. Track approval status with color-coded markers.
Step 5: Tag and Dimension
Use smart tagging to automatically place annotations avoiding overlap. Auto-dimension entire walls with openings and MEP elements.
Step 6: Export Reports
Generate reports with Excel, CSV, or HTML export for documentation and audit trails.
Best Use Cases
| Use Case | Application | Key Benefit |
|---|---|---|
| MEP Coordination | Duct and pipe penetrations through walls/floors | Automatic updates when services move |
| Structural Engineering | Review and approve openings | BCF collaboration, approval tracking |
| Architectural Design | Door and window conversion to structural openings | Eliminate redundant modeling |
| Large Projects | Linked Revit and IFC models | Multi-discipline coordination |
| Complex Geometry | Slanted ducts or pipes | Sloped openings, polygonal shapes |
| Quality Assurance | Plan check for missing tags | Ensure all openings are documented |
Advantages and Limitations
Advantages:
- ConVoid automates opening creation, saving significant time compared to manual placement.
- Intelligent updates eliminate manual rework when designs change.
- The software supports linked Revit and IFC models for multi-discipline coordination.
- Oversize settings accommodate firestopping and sealing requirements.
- Slope support handles slanted MEP elements. Polygonal openings (3-12 sides) address complex scenarios.
- Parameter transfer keeps fire ratings and system information synchronized.
- Smart tagging and auto-dimensioning speed up documentation.
- Clash detection identifies coordination issues.
- BCF collaboration enables structured review and approval workflows. Change tracking provides audit trails.
Limitations:
- Manual editing of parameters on openings created by ConVoid is not recommended, as the plugin manages these dynamically.
- The tool marks openings as “Deleted” rather than immediately removing them from the model, requiring verification.
- A 14-day trial limits evaluation period.
- Full functionality requires a paid license.
Alternatives to ConVoid Openings
| Software | Best For | Key Difference from ConVoid |
|---|---|---|
| Manual Revit openings | Simple projects | Free but time-consuming, no automatic updates |
| BIM 360 / BIM Collaborate | Cloud coordination | Different focus, no automatic opening generation |
| Solibri | Model checking | More comprehensive but no opening creation |
| Navisworks | Clash detection | No opening automation |
| Dynamo scripts | Custom automation | Requires scripting expertise, no BCF integration |
Frequently Asked Questions
Q1. What is ConVoid Openings used for?
ConVoid automates the creation and management of MEP, structural, and builder’s work openings in Autodesk Revit based on intersections between MEP services and structural host elements.
Q2. What Revit and IFC models are supported?
ConVoid supports linked Revit and IFC models from all disciplines with no model requirements. All 3D elements and Revit categories are supported.
Q3. What opening types can be created?
Builders work openings, MEP penetrations, recesses and pockets, structural openings, provision for voids, and converted doors/windows.
Q4. What shapes are supported?
Rectangular, circular, slanted (for angled intersections), and polygonal openings with 3 to 12 sides.
Q5. Does ConVoid support linked models?
Yes. ConVoid works with linked Revit and IFC models without requiring all elements in the same file.
Q6. What is BCF collaboration?
BCF (BIM Collaboration Format) allows export and import of issues for reviewing and approving openings with structural engineers. Includes 3D markers and viewpoints.
Q7. Is there a free trial available?
Yes. ConVoid offers a 14-day trial available on the downloads page.
Q8. Can ConVoid convert IFC Provision for Voids?
Yes. ConVoid converts IFC Provision for Voids directly to Revit openings.
Q9. What happens if I manually edit opening parameters?
Manual editing is not recommended, as ConVoid manages these parameters dynamically based on the linked MEP service.
Q10. What reports can be generated?
Excel, CSV, and HTML reports with automatic formatting for documentation and audit trails.
Final Thoughts
The software delivers value across multiple disciplines. For the MEP engineer, automatic opening creation based on service intersections saves hours. For the structural engineer, BCF collaboration provides a clear review and approval workflow. For the BIM coordinator, change tracking and reporting ensure accountability. For the architect, door and window conversion eliminates redundant modeling.
What sets ConVoid apart from manual methods is the intelligent update capability. When a duct moves or resizes, the opening updates automatically. When a wall thickness changes, the opening adjusts. This dynamic link ensures coordination throughout the project lifecycle.
